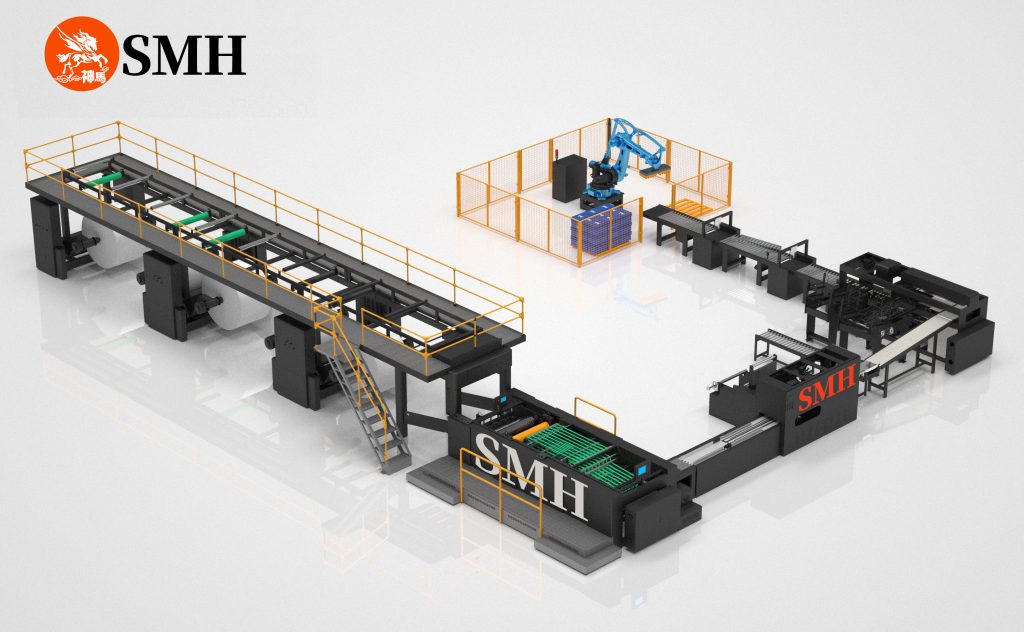

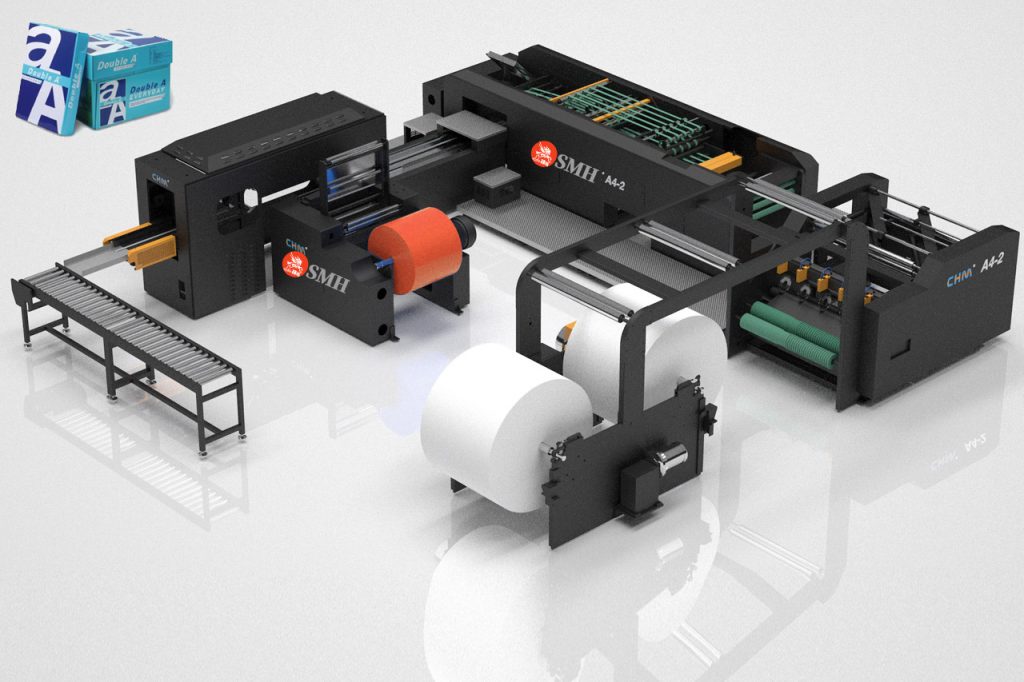

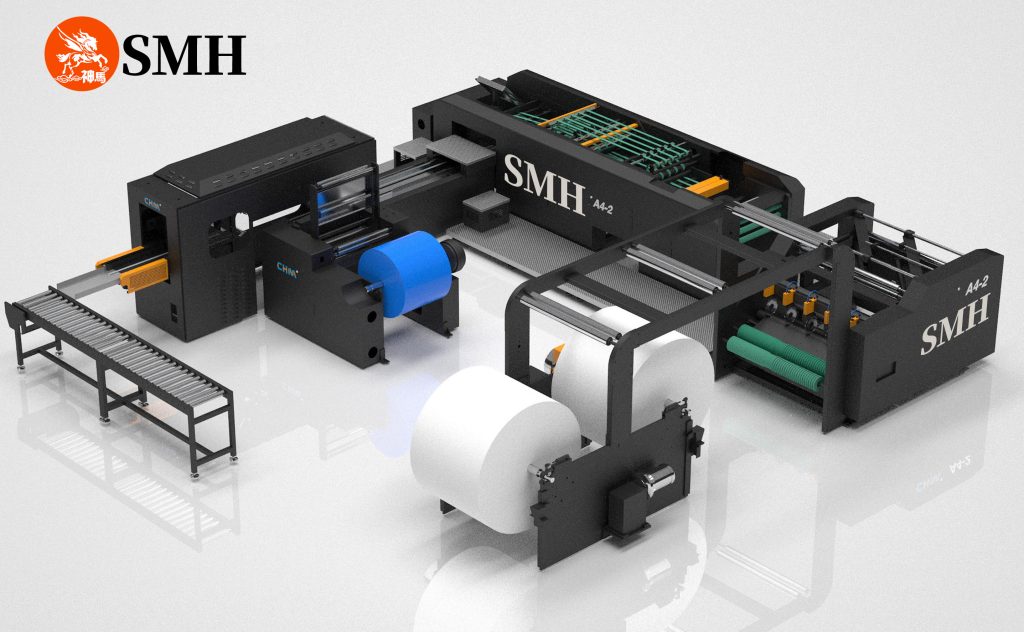

SMH A4/A3 paper production line Machine
SMH A3 A4 paper production line Brief Introduction
We’ve got a complete line for producing A3 and A4 paper, both in high capacity and small capacity options. Everything is fully automatic. The process covers cutting, ream wrapping, carton box packaging, and robot arm stacking. By the way, the carton box packaging and robot arm stacking parts are optional if you don’t need them.
CHM is one of the top manufacturers of A4 and A3 paper production lines in China. Back in 2006, CHM Machinery developed China’s very first A4 paper production line. With three production bases in China covering nearly 140,000 square meters, CHM has grown into the world’s second-largest sheeting machine manufacturer that can produce independently.
Roll to sheet cutter machine.
Model of CHM A4 paper production line
| Production capacity | about 1 ton /hour | about 2~2.5 tons /hour | about 3 tons /hour |
| Series | SMHseries | SMHseries | SMHseries |
| Model | CHM-A4-2 | CHM-A4-4 | CHM-A4-5 |
| Number of Rolls | 2 | 4/5 | 4/5 |
| Pockets | 2 | 4 | 5 |
| Cutting Numbers | 4 | 4 | 5 |
| Capacity | 12 reams/min (2 reels feeding) | 27 reams/min(A4-4 (4):4 reels feeding) 33 reams/min (A4-4 (5):5 reels feeding) | 42 reams/min (5 reels feeding) |
| Production Speed | Max 220-250m/min (depends on different paper quality) | Max 220-250m/min (depends on different paper quality) | Max 220-250m/min (depends on different paper quality) |
| Cutting Precision | ±0.2mm | ±0.2mm | ±0.2mm |
| Paper Roll Width | Gross width 850mm, net width 845mm | Gross width 1060mm, net width 1055mm | Gross width 1060mm, net width 1055mm |
| Paper Roll Diameter | Max.Ø1400mm. Min.Ø600mm | Max.Ø1500mm. Min.Ø600mm | Max.Ø1500mm. Min.Ø600mm |
| Paper Core Diameter | 3″ (76.2mm) or 6″ (152.4mm) or according to the clients’ demand | 3″ (76.2mm) or 6″ (152.4mm) or according to the clients’ demand | 3″ (76.2mm) or 6″ (152.4mm) or according to the clients’ demand |
How to choose the model that can meet your needs?
1. If your factory work 8 hours per day, 25 days per month, how many tons do you need to produce per month?
- CHM-A4-2(2 reels feeding) can cutting and packing about 200 tons per month.(Cutting 1 ton per hour in average.)
- CHM-A4-4(4 reels feeding) can cutting and packing about 400 tons per month.(Cutting 2 ton per hour in average.)
- CHM-A4-4(5 reels feeding) can cutting and packing about 500 tons per month.(Cutting 2.5 ton per hour in average.)
- CHM-A4-5(5 reels feeding) can cutting and packing about 600 tons per month.(Cutting 3 ton per hour in average.)
2. What is your paper roll width? 845mm-850mm or 1055mm-1060mm?
3. Carton box packaging and robot stacking for optional.
If you are still confused about which model to choose, contact us for help.
If you want to talk more about this A4 paper project, please feel free to contact us.
If you have chosen the model, please feel free to contact us to get a quotation list.
Roll to size sheet cutting machine for kraft paper board label stick paper plastic.
