SMH-1400 Roll To Sheets Paper Sheeter

SMH-1400 Roll To Sheets Paper Sheeter

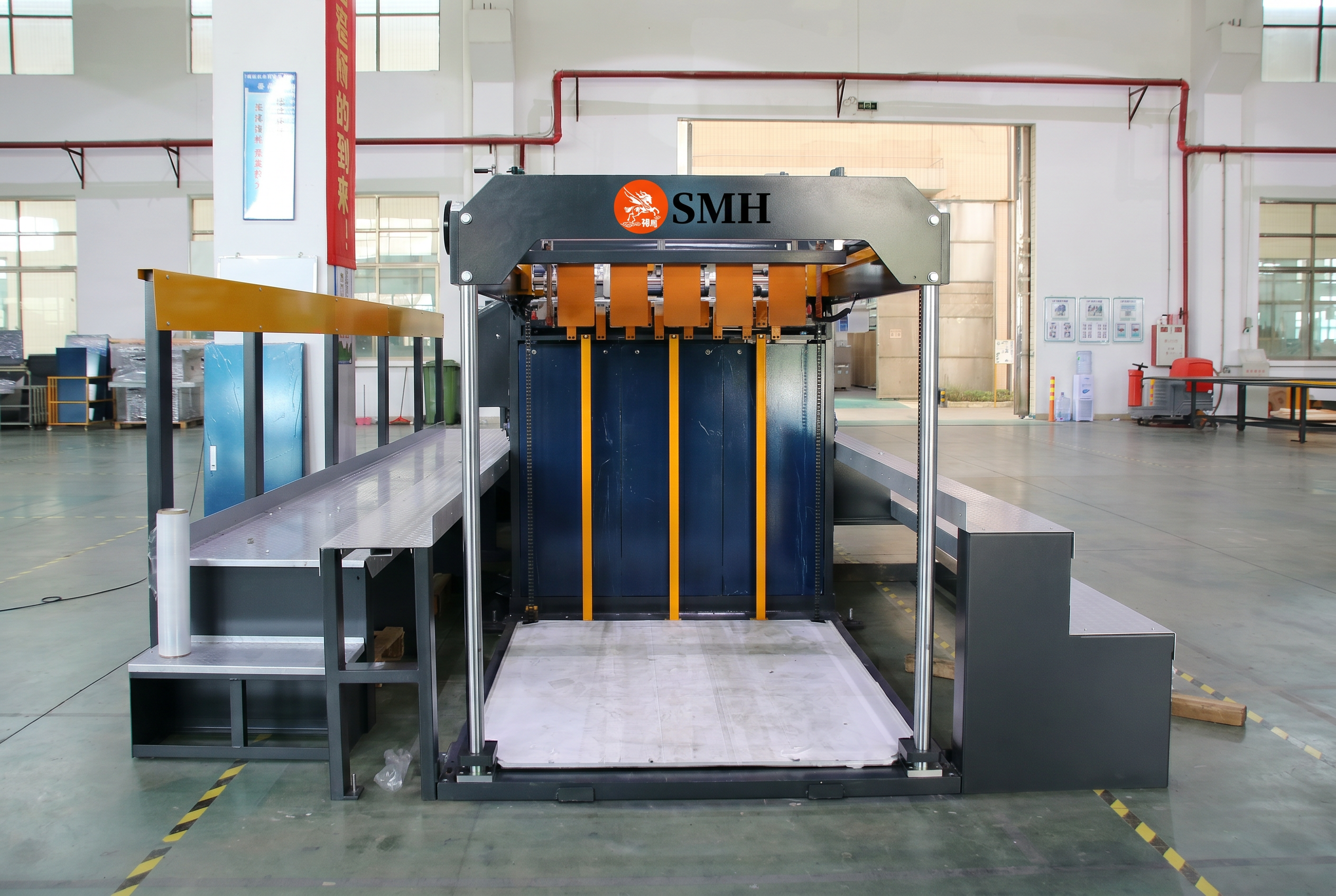

SMH-1400 Roll To Sheets Paper Sheeter - Image 2

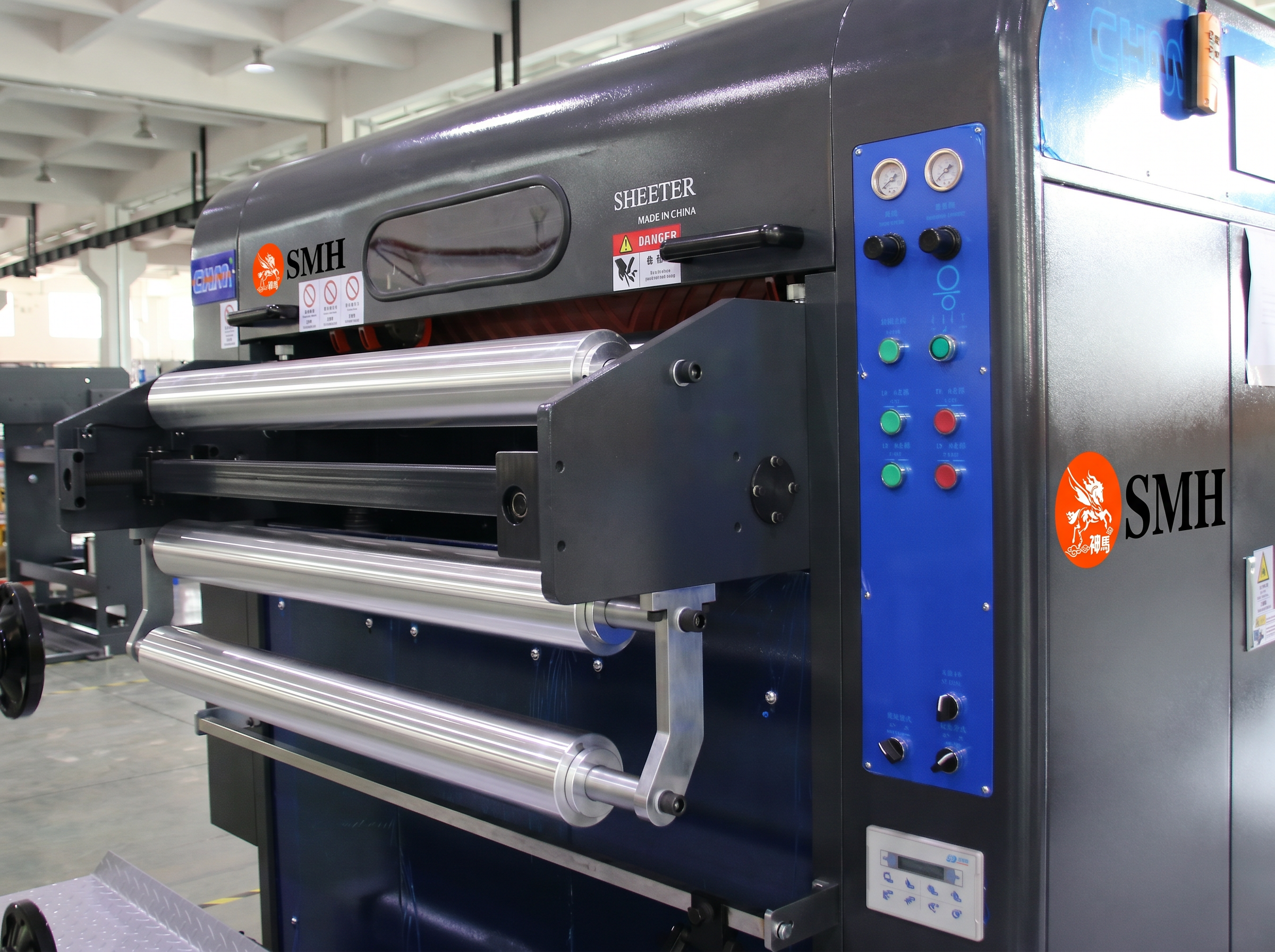

SMH-1400 Roll To Sheets Paper Sheeter - Image 3

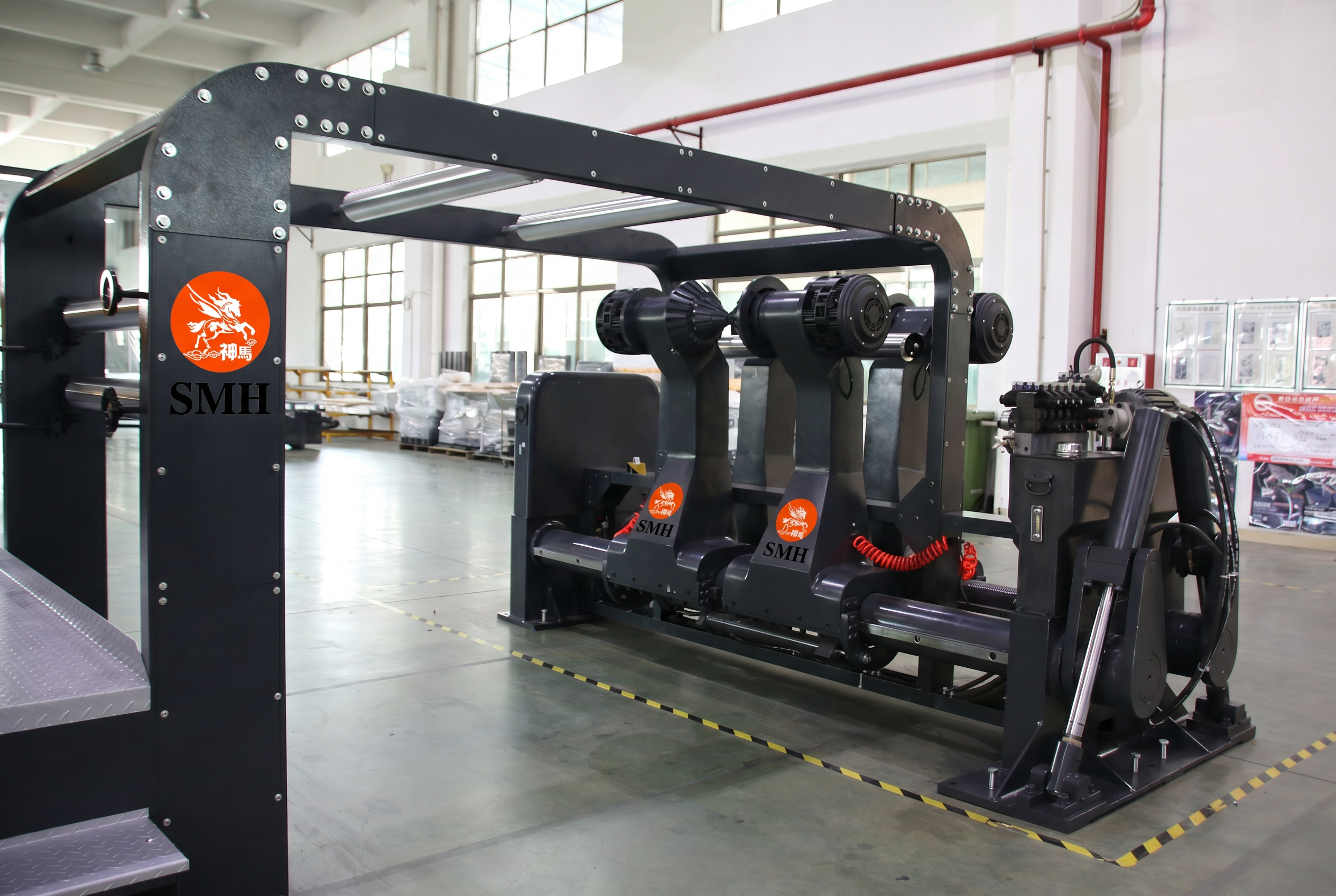

SMH-1400 Roll To Sheets Paper Sheeter - Image 4

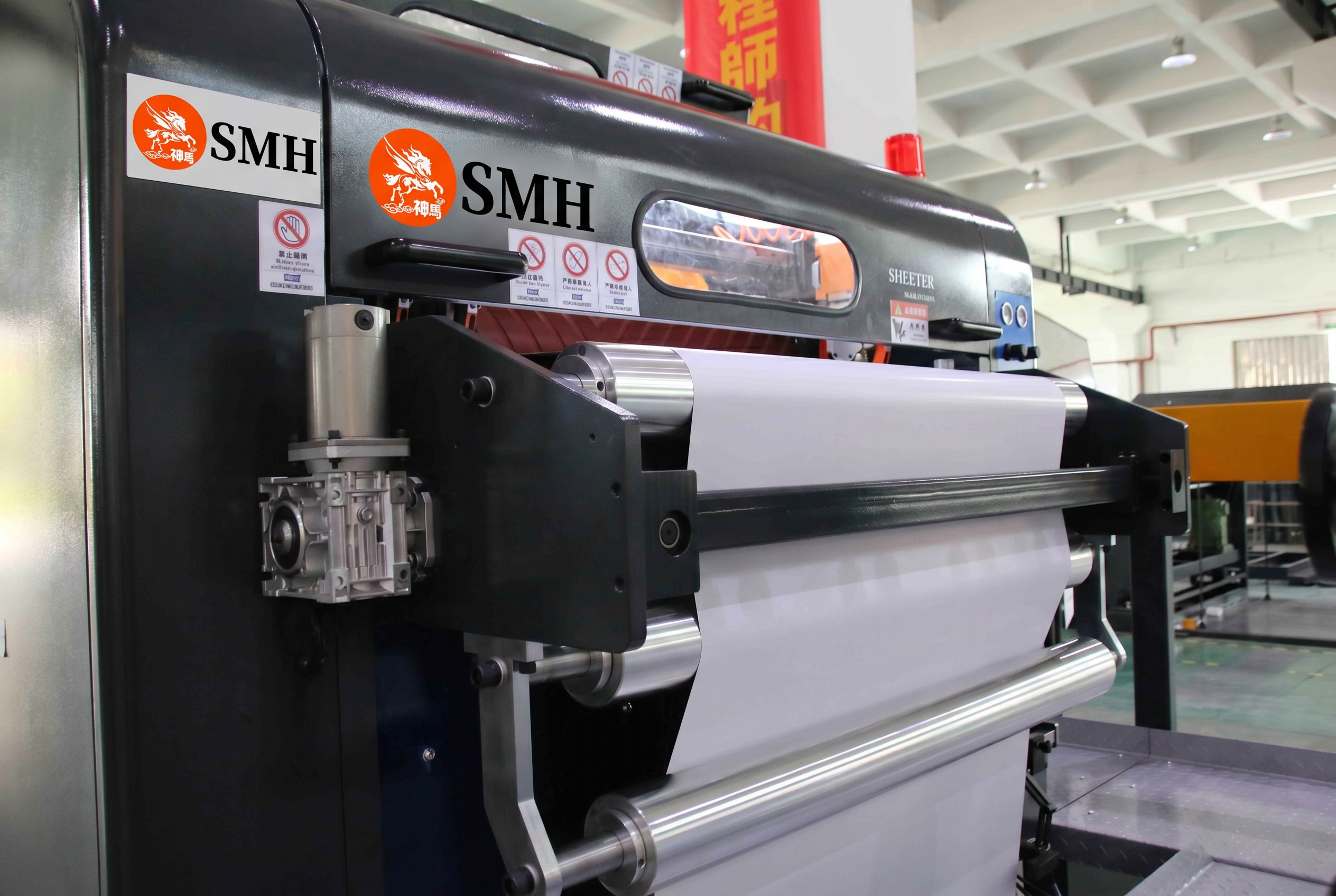

SMH-1400 Roll To Sheets Paper Sheeter - Image 5

SMH-1400 Roll To Sheets Paper Sheeter

Machine parameters

The SMH-1400/1700/1900 computerized high-precision roll paper slitting machine is widely used in card paper, coated paper, kraft paper, cultural paper, offset paper, high-gloss photo paper, gold and silver card paper, aluminum foil paper, laser paper, cigarette and alcohol packaging paper, etc. It is a commonly adopted paper product processing machinery in the current papermaking and printing industries.

sheet cutter

SMH Series

SMH Type SMH-1400 SMH-1700 SMH-1900
Cutting Way Top blade rotary, bottom   blade fixed
Refence weight   of cutting-paper 60-550 GSM 60-550 GSM 60-550 GSM
Cutting   accuracy ±0.5 mm ±0.5 mm ±0.5 mm
Max. cutting   speed 300 sheets/min 300 sheets/min 300 sheets/min
Max. cutting   meter speed 300 m/min 300 m/min 300 m/min
Cutting length   range 450-1650 mm 450-1650 mm 450-1650 mm
Max. scroll   diameter 1800 mm 1800 mm 1800 mm
Paper-piling   height 1300 mm 1300 mm 1300 mm
Max paper-cutting   width 1400 mm 1700 mm 1900 mm
Weight 12000 kg 13000 kg 14000 kg
Dimension(L×W×H) 12158mm*3783mm*2230mm 12158mm*4083mm*2230mm 12158mm*4283mm*2230mm

Q1: What makes this machine different from traditional sheeters?

A: It uses a fully servo-driven precision system, ensuring higher speed, better accuracy, and more stable production than conventional mechanical sheeters.

Q2: What type of drive system does it use?

A: It uses a single rotary servo system, ensuring stable synchronization and precise cutting control.

Q3: What materials can it process?

A: It can process kraft paper, offset paper, cardboard, coated paper, and other industrial paper types.

Category: Tags: , , , Brand:

Description

High Precision, High Speed Paper Cutting Solution

The SMH-1400/1700/1900 is a servo-driven, high-speed paper sheeter designed for precision and efficiency in industrial production. It converts jumbo paper rolls into accurate sheets, suitable for a wide range of paper types including kraft paper, offset paper, coated paper, and cardboard.

This machine supports cutting 2, 4, or 6 rolls simultaneously, improving output while maintaining stable performance. The single rotary cutting system ensures smooth operation, high accuracy, and consistent sheet quality.

With a maximum cutting speed of up to 300 sheets per minute (300 m/min), and a cutting accuracy within ±0.5 mm, it meets the demands of high-volume production environments.
